Post your FTTC line stats & unlocking info

pyropetepete · 14 Apr 2013 at 08:40

Code:

BusyBox v1.9.1 (2010-10-15 17:59:06 CST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

# xdslcmd info --show
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 15064 Kbps, Downstream rate = 50604 Kbps
Path:   0, Upstream rate = 10000 Kbps, Downstream rate = 39999 Kbps

Link Power State:       L0
Mode:                   VDSL2 Annex B
VDSL2 Profile:          Profile 17a
TPS-TC:                 PTM Mode
Trellis:                U:ON /D:ON
Line Status:            No Defect
Training Status:        Showtime
                Down            Up
SNR (dB):        10.5            8.8
Attn(dB):        0.0             0.0
Pwr(dBm):        12.2            6.2
                        VDSL2 framing
                        Path 0
B:              240             239
M:              1               1
T:              64              35
R:              14              0
S:              0.1917          0.7622
L:              10644           2519
D:              19              1
I:              255             120
N:              255             240
                        Counters
                        Path 0
OHF:            17707678                313549
OHFErr:         78              12
RS:             1133291291              2562525
RSCorr:         14922           0
RSUnCorr:       723             0

                        Path 0
HEC:            418             0
OCD:            0               0
LCD:            0               0
Total Cells:    4193160495              0
Data Cells:     349857574               0
Drop Cells:     0
Bit Errors:     0               0

ES:             47              12
SES:            0               0
UAS:            18              18
AS:             54514

                        Path 0
INP:            0.00            0.00
PER:            3.06            13.33
delay:          1.00            0.00
OR:             83.48           37.18

Bitswap:        668             921

I forgot yesterday to do this.

QOS has given me 1.2mb upload boost!

j_to_da_t · 15 Apr 2013 at 09:33

I swapped my DSL cable over for the Tandy high quality one yesterday. I did so at the same time as installing the new modem firmware as I didn't want to have more than one disconnection in case DLM saw them as dropped connections.

Because of this it is difficult to say which was responsible for the DS speed increase, but there was a definite increase. Attainable speed went up by 4mb, sync speed by about 2.5mb.

Locky · 15 Apr 2013 at 10:33

j_to_da_t said:
I swapped my DSL cable over for the Tandy high quality one yesterday. I did so at the same time as installing the new modem firmware as I didn't want to have more than one disconnection in case DLM saw them as dropped connections.

Because of this it is difficult to say which was responsible for the DS speed increase, but there was a definite increase. Attainable speed went up by 4mb, sync speed by about 2.5mb.

I would say both have a part to play, very nice increase for little outlay.

This will help people whos lines are not as expected.

I would be happy with that.

You will notice less crc/hec errors too, this might also help people who drop in and of fastpath.

ChrisD. · 21 Apr 2013 at 09:22

What can you tell me about my line?

Code:

# xdslcmd info --pbParams
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 9434 Kbps, Downstream rate = 46560 Kbps
Path:   0, Upstream rate = 9398 Kbps, Downstream rate = 39997 Kbps

Discovery Phase (Initial) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959) (2792,4083)
Medley Phase (Final) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959)
       VDSL Port Details       Upstream        Downstream
Attainable Net Data Rate:       9434 kbps         46560 kbps
Actual Aggregate Tx Power:        5.7 dBm          12.7 dBm
============================================================================
  VDSL Band Status        U0      U1      U2      U3      D1      D2      D3
  Line Attenuation(dB):  2.6     37.2    55.8     N/A    17.7    47.3    68.4

Signal Attenuation(dB):  2.6     37.1    54.5     N/A    17.7    47.3     N/A

        SNR Margin(dB):  5.7     6.0     6.1      N/A    9.3     9.3      N/A

         TX Power(dBm): -3.6    -5.0     4.7      N/A    11.3    7.2      N/A

#

Code:

# xdslcmd info --show
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 9451 Kbps, Downstream rate = 46812 Kbps
Path:   0, Upstream rate = 9398 Kbps, Downstream rate = 39997 Kbps

Link Power State:       L0
Mode:                   VDSL2 Annex B
VDSL2 Profile:          Profile 17a
TPS-TC:                 PTM Mode
Trellis:                U:ON /D:ON
Line Status:            No Defect
Training Status:        Showtime
                Down            Up
SNR (dB):        9.4             6.0
Attn(dB):        0.0             0.0
Pwr(dBm):        12.7            5.7
                        VDSL2 framing
                        Path 0
B:              239             238
M:              1               1
T:              64              61
R:              0               16
S:              0.1910          0.8089
L:              10054           2522
D:              1               1
I:              240             255
N:              240             255
                        Counters
                        Path 0
OHF:            9002307         878545
OHFErr:         960             0
RS:             0               3394708
RSCorr:         0               6
RSUnCorr:       0               0

                        Path 0
HEC:            1489            0
OCD:            0               0
LCD:            0               0
Total Cells:    2122295603              0
Data Cells:     88777885                0
Drop Cells:     0
Bit Errors:     0               0

ES:             273             0
SES:            2               0
UAS:            20              20
AS:             27612

                        Path 0
INP:            0.00            0.00
PER:            3.05            12.33
delay:          0.00            0.00
OR:             62.83           20.10

Bitswap:        2813            25

#

If I'm on the cabinet I think I'm on then it's 0.4 miles away.

KIA · 21 Apr 2013 at 12:32

0.4 miles from cab seems accurate.

ChrisD. · 21 Apr 2013 at 12:52

So it's a simple case of the line being too long to support greater speeds?

Locky · 21 Apr 2013 at 14:48

Yes your line is about 650 to 700 meters long, so attainable rate looks about right.

ChrisD. · 21 Apr 2013 at 15:23

Locky said:
Yes your line is about 650 to 700 meters long, so attainable rate looks about right.

Cheers. Anything in the future to upgrade this speed?

More of a case of interest than need really, for what I use the net for it's good enough but it's nice to have extra.

KIA · 21 Apr 2013 at 17:59

MilanoChris said:
Cheers. Anything in the future to upgrade this speed?

More of a case of interest than need really, for what I use the net for it's good enough but it's nice to have extra.

Vectoring might give you a little boost if your cab is already heavily populated.

Locky · 22 Apr 2013 at 07:52

KIA said:
Vectoring might give you a little boost if your cab is already heavily populated.

yeah, I have seen a friends line connected at 57mbit at 750-800meters of .5 copper, but it's now been chopped down to 45mbit due to crosstalk.

lauy · 22 Apr 2013 at 18:04

What do these tell me about my line?

The predicted speeds using my phone number and postcode estimated around 66mb but obviously I am not getting that.

Thanks

Code:

# xdslcmd info --show
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 18414 Kbps, Downstream rate = 54104 Kbps
Path:   0, Upstream rate = 18448 Kbps, Downstream rate = 53440 Kbps

Link Power State:       L0
Mode:                   VDSL2 Annex B
VDSL2 Profile:          Profile 17a
TPS-TC:                 PTM Mode
Trellis:                U:ON /D:ON
Line Status:            No Defect
Training Status:        Showtime
                Down            Up
SNR (dB):        6.2             6.0
Attn(dB):        0.0             0.0
Pwr(dBm):        13.3            6.8
                        VDSL2 framing
                        Path 0
B:              239             239
M:              1               1
T:              64              64
R:              0               14
S:              0.1429          0.4139
L:              13434           4909
D:              1               1
I:              240             127
N:              240             254
                        Counters
                        Path 0
OHF:            257876          89574
OHFErr:         1               0
RS:             0               1435964
RSCorr:         0               1
RSUnCorr:       0               0

                        Path 0
HEC:            3               0
OCD:            0               0
LCD:            0               0
Total Cells:    60714287                0
Data Cells:     1309            0
Drop Cells:     0
Bit Errors:     0               0

ES:             1               0
SES:            0               0
UAS:            140             140
AS:             594

                        Path 0
INP:            0.00            0.00
PER:            2.28            6.62
delay:          0.00            0.00
OR:             87.46           33.82

Bitswap:        111             12

Code:

# xdslcmd info --pbparams
xdslcmd: too many parameters
# xdslcmd info --pbParams
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 18429 Kbps, Downstream rate = 53880 Kbps
Path:   0, Upstream rate = 18448 Kbps, Downstream rate = 53440 Kbps

Discovery Phase (Initial) Band Plan
US: (0,95) (868,1207) (1972,2783)
DS: (32,859) (1216,1963) (2792,3959)
Medley Phase (Final) Band Plan
US: (0,95) (868,1207) (1972,2783)
DS: (32,859) (1216,1963) (2792,3959)
       VDSL Port Details       Upstream        Downstream
Attainable Net Data Rate:      18429 kbps         53880 kbps
Actual Aggregate Tx Power:        6.7 dBm          13.3 dBm
============================================================================
  VDSL Band Status        U0      U1      U2      U3      D1      D2      D3
  Line Attenuation(dB):  4.8     24.1    36.1     N/A    12.6    29.8    45.7

Signal Attenuation(dB):  4.8     23.3    35.0     N/A    12.6    29.8    45.7

        SNR Margin(dB):  5.8     6.0     6.0      N/A    6.1     6.1     6.1

         TX Power(dBm): -3.8    -18.9    6.3      N/A    10.2    7.9     7.0

#

Locky · 22 Apr 2013 at 18:39

lauy said:

What do these tell me about my line?

The predicted speeds using my phone number and postcode estimated around 66mb but obviously I am not getting that.

Thanks

Code:

# xdslcmd info --show
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 18414 Kbps, Downstream rate = 54104 Kbps
Path:   0, Upstream rate = 18448 Kbps, Downstream rate = 53440 Kbps

Link Power State:       L0
Mode:                   VDSL2 Annex B
VDSL2 Profile:          Profile 17a
TPS-TC:                 PTM Mode
Trellis:                U:ON /D:ON
Line Status:            No Defect
Training Status:        Showtime
                Down            Up
SNR (dB):        6.2             6.0
Attn(dB):        0.0             0.0
Pwr(dBm):        13.3            6.8
                        VDSL2 framing
                        Path 0
B:              239             239
M:              1               1
T:              64              64
R:              0               14
S:              0.1429          0.4139
L:              13434           4909
D:              1               1
I:              240             127
N:              240             254
                        Counters
                        Path 0
OHF:            257876          89574
OHFErr:         1               0
RS:             0               1435964
RSCorr:         0               1
RSUnCorr:       0               0

                        Path 0
HEC:            3               0
OCD:            0               0
LCD:            0               0
Total Cells:    60714287                0
Data Cells:     1309            0
Drop Cells:     0
Bit Errors:     0               0

ES:             1               0
SES:            0               0
UAS:            140             140
AS:             594

                        Path 0
INP:            0.00            0.00
PER:            2.28            6.62
delay:          0.00            0.00
OR:             87.46           33.82

Bitswap:        111             12

Code:

# xdslcmd info --pbparams
xdslcmd: too many parameters
# xdslcmd info --pbParams
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 18429 Kbps, Downstream rate = 53880 Kbps
Path:   0, Upstream rate = 18448 Kbps, Downstream rate = 53440 Kbps

Discovery Phase (Initial) Band Plan
US: (0,95) (868,1207) (1972,2783)
DS: (32,859) (1216,1963) (2792,3959)
Medley Phase (Final) Band Plan
US: (0,95) (868,1207) (1972,2783)
DS: (32,859) (1216,1963) (2792,3959)
       VDSL Port Details       Upstream        Downstream
Attainable Net Data Rate:      18429 kbps         53880 kbps
Actual Aggregate Tx Power:        6.7 dBm          13.3 dBm
============================================================================
  VDSL Band Status        U0      U1      U2      U3      D1      D2      D3
  Line Attenuation(dB):  4.8     24.1    36.1     N/A    12.6    29.8    45.7

Signal Attenuation(dB):  4.8     23.3    35.0     N/A    12.6    29.8    45.7

        SNR Margin(dB):  5.8     6.0     6.0      N/A    6.1     6.1     6.1

         TX Power(dBm): -3.8    -18.9    6.3      N/A    10.2    7.9     7.0

#

66mb estimate would put you at about 250 to 300 meter line, but your line is longer than that at about to 450 to 500 meters(rough estimate). Might be a poor D-side (some or all ALU) or heavy crosstalk.

lauy · 22 Apr 2013 at 19:02

Locky said:
66mb estimate would put you at about 250 to 300 meter line, but your line is longer than that at about to 450 to 500 meters(rough estimate). Might be a poor D-side (some or all ALU) or heavy crosstalk.

So is there anyway to get my speeds to improve in any way?

Thanks for the reply anyway!

Locky · 23 Apr 2013 at 07:38

lauy said:
So is there anyway to get my speeds to improve in any way?

Thanks for the reply anyway!

Try one of those cables from Tandy, try the newer hg612 firmware, have a look at the house wiring and wait for vectoring.

ChrisD. · 23 Apr 2013 at 07:50

My stats have changed a bit:

Code:

# xdslcmd info --pbParams
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 2
Max:    Upstream rate = 9586 Kbps, Downstream rate = 51724 Kbps
Path:   0, Upstream rate = 9491 Kbps, Downstream rate = 39996 Kbps

Discovery Phase (Initial) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959) (2792,4083)
Medley Phase (Final) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959)
       VDSL Port Details       Upstream        Downstream
Attainable Net Data Rate:       9586 kbps         51724 kbps
Actual Aggregate Tx Power:        5.7 dBm          12.7 dBm
============================================================================
  VDSL Band Status        U0      U1      U2      U3      D1      D2      D3
  Line Attenuation(dB):  2.6     37.2    55.9     N/A    17.7    47.4    68.6

Signal Attenuation(dB):  2.6     37.1    54.6     N/A    17.7    47.4     N/A

        SNR Margin(dB):  5.0     6.0     6.2      N/A    8.0     7.9      N/A

         TX Power(dBm): -3.6    -4.8     4.7      N/A    11.2    7.2      N/A

#

Code:

# xdslcmd info --show
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 2
Max:    Upstream rate = 9590 Kbps, Downstream rate = 51604 Kbps
Path:   0, Upstream rate = 9491 Kbps, Downstream rate = 39996 Kbps

Link Power State:       L0
Mode:                   VDSL2 Annex B
VDSL2 Profile:          Profile 17a
TPS-TC:                 PTM Mode
Trellis:                U:ON /D:ON
Line Status:            No Defect
Training Status:        Showtime
                Down            Up
SNR (dB):        7.9             6.1
Attn(dB):        0.0             0.0
Pwr(dBm):        12.7            5.7
                        VDSL2 framing
                        Path 0
B:              57              238
M:              1               1
T:              64              61
R:              16              16
S:              0.0461          0.8009
L:              12835           2547
D:              701             1
I:              74              255
N:              74              255
                        Counters
                        Path 0
OHF:            2853868         519467
OHFErr:         0               0
RS:             547942281               1613094
RSCorr:         380412          0
RSUnCorr:       0               0

                        Path 0
HEC:            0               0
OCD:            0               0
LCD:            0               0
Total Cells:    487781967               0
Data Cells:     4152412         0
Drop Cells:     0
Bit Errors:     0               0

ES:             5461            12
SES:            67              0
UAS:            40              40
AS:             6344

                        Path 0
INP:            3.00            0.00
PER:            2.21            12.21
delay:          8.00            0.00
OR:             86.72           20.30

Bitswap:        1061            0

#

As has my ping, gone up around 10ms on average since 6am.

Locky · 23 Apr 2013 at 08:00

MilanoChris said:

My stats have changed a bit:

Code:

# xdslcmd info --pbParams
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 2
Max:    Upstream rate = 9586 Kbps, Downstream rate = 51724 Kbps
Path:   0, Upstream rate = 9491 Kbps, Downstream rate = 39996 Kbps

Discovery Phase (Initial) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959) (2792,4083)
Medley Phase (Final) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959)
       VDSL Port Details       Upstream        Downstream
Attainable Net Data Rate:       9586 kbps         51724 kbps
Actual Aggregate Tx Power:        5.7 dBm          12.7 dBm
============================================================================
  VDSL Band Status        U0      U1      U2      U3      D1      D2      D3
  Line Attenuation(dB):  2.6     37.2    55.9     N/A    17.7    47.4    68.6

Signal Attenuation(dB):  2.6     37.1    54.6     N/A    17.7    47.4     N/A

        SNR Margin(dB):  5.0     6.0     6.2      N/A    8.0     7.9      N/A

         TX Power(dBm): -3.6    -4.8     4.7      N/A    11.2    7.2      N/A

#

Code:

# xdslcmd info --show
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 2
Max:    Upstream rate = 9590 Kbps, Downstream rate = 51604 Kbps
Path:   0, Upstream rate = 9491 Kbps, Downstream rate = 39996 Kbps

Link Power State:       L0
Mode:                   VDSL2 Annex B
VDSL2 Profile:          Profile 17a
TPS-TC:                 PTM Mode
Trellis:                U:ON /D:ON
Line Status:            No Defect
Training Status:        Showtime
                Down            Up
SNR (dB):        7.9             6.1
Attn(dB):        0.0             0.0
Pwr(dBm):        12.7            5.7
                        VDSL2 framing
                        Path 0
B:              57              238
M:              1               1
T:              64              61
R:              16              16
S:              0.0461          0.8009
L:              12835           2547
D:              701             1
I:              74              255
N:              74              255
                        Counters
                        Path 0
OHF:            2853868         519467
OHFErr:         0               0
RS:             547942281               1613094
RSCorr:         380412          0
RSUnCorr:       0               0

                        Path 0
HEC:            0               0
OCD:            0               0
LCD:            0               0
Total Cells:    487781967               0
Data Cells:     4152412         0
Drop Cells:     0
Bit Errors:     0               0

ES:             5461            12
SES:            67              0
UAS:            40              40
AS:             6344

                        Path 0
INP:            3.00            0.00
PER:            2.21            12.21
delay:          8.00            0.00
OR:             86.72           20.30

Bitswap:        1061            0

#

As has my ping, gone up around 10ms on average since 6am.

DLM the wonderful thing (not) has put interleave on your line. I think it's the lowest depth and 3 INP symbols is low (so far)

Lucky for you - you had a decent ping to start with so around the 20ms mark.

ChrisD. · 23 Apr 2013 at 08:20

Just upgraded the firmware on the 612:

Code:

ATP>SH


BusyBox v1.9.1 (2010-10-15 17:59:06 CST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

# xdslcmd info --pbParams
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 9598 Kbps, Downstream rate = 53420 Kbps
Path:   0, Upstream rate = 9495 Kbps, Downstream rate = 39998 Kbps

Discovery Phase (Initial) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959) (2792,4083)
Medley Phase (Final) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959)
       VDSL Port Details       Upstream        Downstream
Attainable Net Data Rate:       9598 kbps         53420 kbps
Actual Aggregate Tx Power:        5.6 dBm          12.6 dBm
============================================================================
  VDSL Band Status        U0      U1      U2      U3      D1      D2      D3
  Line Attenuation(dB):  2.6     37.2    56.0     N/A    17.7    47.4    73.7

Signal Attenuation(dB):  2.7     37.1    54.6     N/A    17.7    47.4     N/A

        SNR Margin(dB):  6.0     6.0     6.2      N/A    8.1     7.9      N/A

         TX Power(dBm): -3.6    -4.7     4.5      N/A    11.1    7.4      N/A

#

Locky · 23 Apr 2013 at 20:21

MilanoChris said:

Just upgraded the firmware on the 612:

Code:

ATP>SH


BusyBox v1.9.1 (2010-10-15 17:59:06 CST) built-in shell (ash)
Enter 'help' for a list of built-in commands.

# xdslcmd info --pbParams
xdslcmd: ADSL driver and PHY status
Status: Showtime
Retrain Reason: 0
Max:    Upstream rate = 9598 Kbps, Downstream rate = 53420 Kbps
Path:   0, Upstream rate = 9495 Kbps, Downstream rate = 39998 Kbps

Discovery Phase (Initial) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959) (2792,4083)
Medley Phase (Final) Band Plan
US: (0,95) (880,1195) (1984,2771)
DS: (32,859) (1216,1959)
       VDSL Port Details       Upstream        Downstream
Attainable Net Data Rate:       9598 kbps         53420 kbps
Actual Aggregate Tx Power:        5.6 dBm          12.6 dBm
============================================================================
  VDSL Band Status        U0      U1      U2      U3      D1      D2      D3
  Line Attenuation(dB):  2.6     37.2    56.0     N/A    17.7    47.4    73.7

Signal Attenuation(dB):  2.7     37.1    54.6     N/A    17.7    47.4     N/A

        SNR Margin(dB):  6.0     6.0     6.2      N/A    8.1     7.9      N/A

         TX Power(dBm): -3.6    -4.7     4.5      N/A    11.1    7.4      N/A

#

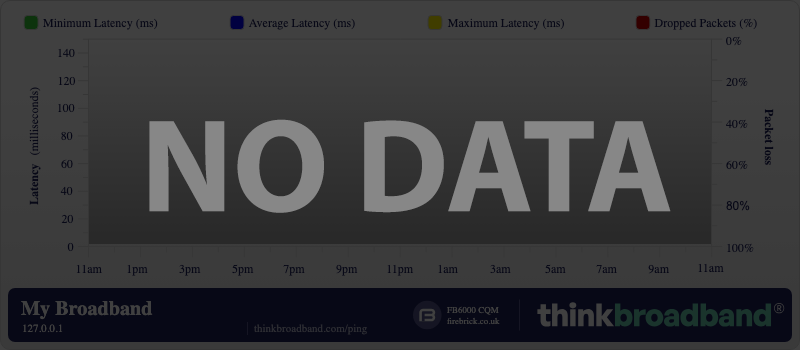

I hope that epic line of red is you updating the firmware

ChrisD. · 23 Apr 2013 at 23:25

Yeah it is, didn't go so well to be honest, got there in the end though.

Locky · 24 Apr 2013 at 07:33

MilanoChris said:
Yeah it is, didn't go so well to be honest, got there in the end though.

Interleave is doing it's job on your line, I see you are now getting much less packet loss.
