Raptor Lake Leaks + Intel 4 developments

[Dave2150]

My 12700k, up to 5.3Ghz for a few cores, doesn't typically get close to that amount of wattage.....

in many games the CPU load is very low. Take a look in the above screen, you will see the CPU usage to just over 60w.

A zoomed screen of the wattage part....

For games like Civ Vi tho that can be different.

Similar principles should apply for RL.

Yeap. In most games, 12th and 13th gen are actually much more efficient than Ryzen CPU's, excluding the 5800X3D which either wins or is similar to a tuned 12/13th gen.



[Dave2150]

Do you tune LLC?? you can achieve lower volts so less temps in doing so, what board do you use??

Z690 hero. I use LLC6 for my highest OC profiles, and 4 for the 24/7 ones. Not tried each number in great detail yet, sounds like it could be worth doing!



[Dave2150]

what about AAA games though at ultra settings?

12th and 13th gen are very efficient power wise in games. They really are gaming beasts, top performance and high power efficiency. Even at stock they are efficient, though if you undervolt or set wattage limitations you can get to ultra efficient levels.

der8auer Did a good video in his review, the above image is a screencap from that video

Testing and Tuning the new 13900K for Efficiency

Support me on Patreon: https://www.patreon.com/der8auer---------------------------------------------------------Save 10% on your iFixit purchase: DER8AUER10h...

www.youtube.com



[Journey]

id a good video in his review, the above image is a screencap from that video

He asked about AAA games, not an old game running with low Esports settings, D'OH!



[LtMatt]

I was thinking today about switching to intel for the first time in years preferably 13700k but I see it uses loads of power compared to AMD. My current 3600x only uses 50-60w under load.

I only use my comp for gaming and browsing but with electric prices as they are I can't afford to be running a CPU that consumes 200w. Is this correct?

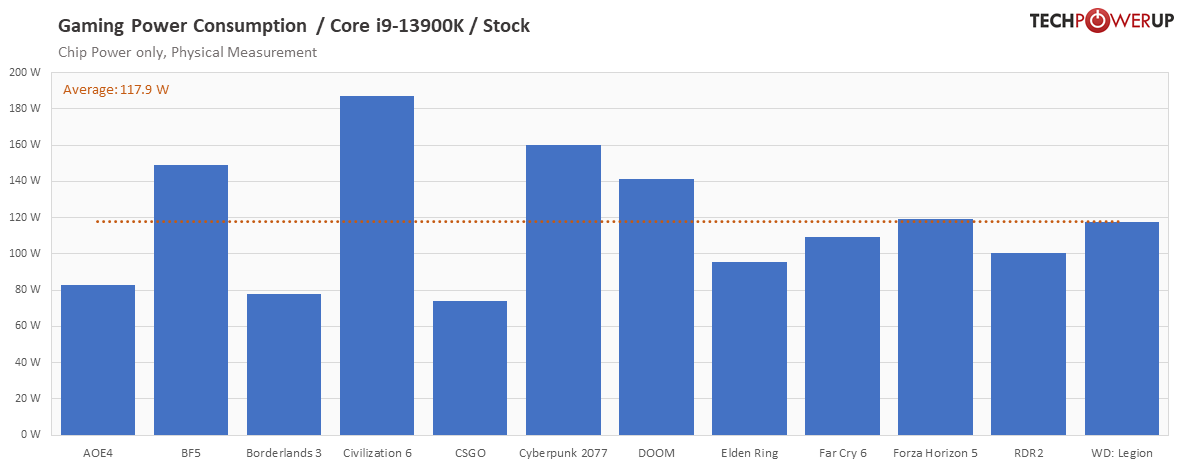

12 game average power draw from TPU.

Spoiler



[Vimes]

12 game average power draw from TPU.

Spoiler

Interesting, I hadn't seen that before but seems to be similar to my findings for the 12700k, typically around 60w.
Also they noted that Civ VI seems to also be demanding for the CPU....

Spoiler



[Silent_Scone]

Seems alright to me.

13700K, 125w with AI OC (best case VID behaviour) (8200Mhz memory)

4090 pumping out 230+ fps under 200w.



[sewerino26]

Hi guys. I have an question.

Hi. I have 12900K stock 4880mhz ( 60-70C in game )

32 GB 2x16 GB DDR4 3600mhz in GEAR 1

Palit Gamerock Pro OC rtx 4090

1300W Seasonic Platinum Prime

Aorus Elite DDR4 Z690

Windows 11 2H22. Updated new nvidia drivers.

I have performance question in Cyberpunk 2077

I used 1440P,DLSS QUALITY,RT PSYCHO,rest ultra for testing fps.
Test place was near hotel , when you leaving apartment in beggining on game and talking with Jackie.
So driving there in loop i have fps between 80-90fps with gpu usage 80%.

I compare the same scenario and place with someone with Rtx 4090 and 13900K and he have average 20-25 fps more than me, 100-110fps. Is this possible that 13900K is so fast or its my system ? thx
I have updated drivers.



[Robert896r1]

SP rating for Mem Controller on latest beta bios



[Nickolp1974]

Z690 hero. I use LLC6 for my highest OC profiles, and 4 for the 24/7 ones. Not tried each number in great detail yet, sounds like it could be worth doing!

it defo is worth doing, use HWmonitor have that open and watch VID and core voltage, set LLC 4 and set DC LL to 0.98 and AC LL to say 0.3(these options are in the sub menu's 2 below digi vrm) then set voltage to adaptive, save and boot, run R23 and write down VID and core voltages, you are looking for these to near enough match each other. If not back to bios and most likely increase DC LL to 1.00 save and run again, keep increasing till they match. Once that is done keep decreasing AC LL((0.03 at a time 0.27, 0.24 etc) till it fails to run R23 then put it up a couple of notch's, mine runs AC LL at 0.14 and DC LL at 1.02 for reference. Power usage and temps will fall as it tunes the LLC chosen to your motherboard.
I also use cpuz as its sometimes quicker at reporting core voltage, so check that alongside VID in HWmonitor. Adaptive core voltage must be used!



[Nickolp1974]

SP rating for Mem Controller on latest beta bios

Is that on 0802??

edit: just seen its on 0031



[Robert896r1]

My apex stuck in customs per asus. ffs



[Nickolp1974]

My apex stuck in customs per asus. ffs

Nooooo, so tempted myself but the hero is pretty solid to be fair. Running 7200mhz c32 tight on original Dell green sticks. Just checked my MC sp, 70



[Robert896r1]

Nooooo, so tempted myself but the hero is pretty solid to be fair. Running 7200mhz c32 tight on original Dell green sticks. Just checked my MC sp, 70

iEdge is looking solid and tempted mainly because I've never had an itx system.

Yeah, Hero bios is coming along really nicely as well.



[Nickolp1974]

iEdge is looking solid and tempted mainly because I've never had an itx system.

Yeah, Hero bios is coming along really nicely as well.

it is, no issues so far with mem and cpu OC, just 1 problem with audio, hooked up to a decent set of studio monitors and it sounds like a high pitched printer is running in the background with no audio playing, tried a couple of cables but still the same.



[Robert896r1]

it is, no issues so far with mem and cpu OC, just 1 problem with audio, hooked up to a decent set of studio monitors and it sounds like a high pitched printer is running in the background with no audio playing, tried a couple of cables but still the same.

Tried removing all the 'asus' branded audio drivers and realtek console?



[Nickolp1974]

Tried removing all the 'asus' branded audio drivers and realtek console?

i did sonic studio, didn't even know about the realtek one, thanks



[sewerino26]

Hi.I compared fps in gameplay in Cyberpunk 2077 ( 1440P dlss quality,rt ultra ) on my Rtx 4090 with Ryzen 5800X3D with Rtx 4090. I have 12900K stock,ddr4 3600mhz.

And i have the same fps . Is this normal? I have the same performance on my 12900K stock Rtx 4090, like 5800X3D with Rtx 4090.



[MartinPrince]

Hi.I compared fps in gameplay in Cyberpunk 2077 ( 1440P dlss quality,rt ultra ) on my Rtx 4090 with Ryzen 5800X3D with Rtx 4090. I have 12900K stock,ddr4 3600mhz.

And i have the same fps . Is this normal? I have the same performance on my 12900K stock Rtx 4090, like 5800X3D with Rtx 4090.

Sorry but this doesn't really belong in a thread about Raptor Lake.



[Silent_Scone]

LMy apex stuck in customs per asus. ffs

If it’s come from TW should be DHL, never had any problems. Don’t get stuff sent to your work address
